Drawing Raster Maps with ggplot2: showing Urbanization levels

Showing Urbanization using Raster images from Copernicus Global Land Service, and tools like ggplot2 and R

This post is inspired from the tutorial 3D map with rayshader and ggplot2 in R by Milos Popovic. Credits to this repo for most of the code shown below.

Static Map of Urbanization

Obtaining the map of Haryana (from India’s Official Government Map)

Source: Survey of India Official Maps

Code

# Plotting the plain map of Haryana
ggplot(haryana_borders |> st_simplify(dTolerance = 100)) +
  geom_sf() +
  ggthemes::theme_map() +
  labs(title = "A Map of Haryana (India) plotted with geom_sf()") +
  theme(plot.title = element_text(hjust = 0.5))

Figure 1: Using sf package to obtain, transform and plot a Map of Haryana (India). The map is plotted with geom_sf()

Obtaining Urban Cover Data

Credits for this data goes to Copernicus Global Land Service which provides bio-geophysical products of global land surface. Using this code we get a raster file.

Code

# Obtaining the official data from
# https://lcviewer.vito.be/download

# A fixed initial part of the URL for data
start_url <- "https://s3-eu-west-1.amazonaws.com/vito.landcover.global/v3.0.1/2015/E060N40/E060N40_PROBAV_LC100_global_v3.0.1_"

# Variable part: Each year
var_url <- 2015:2019

# Fixed part of the end of the URL
end <- "-nrt_BuiltUp-CoverFraction-layer_EPSG-4326.tif"

urls <- paste0(start_url, var_url, end)

# For now, focussing only on the final year data, i.e. 2019
urls <- urls[5]

# for (url in urls) {
#    download.file(
#      url,
#      destfile = basename(url),
#      mode = "wb")
#}

Getting the data on Urban Cover into R

We can use the rast() fucntion in {terra} package to display the urban cover in R. This forms the rough data basis which we will use to later plot the object.

Code

urban_cover <- lapply(raster_files, terra::rast)
urban_cover_mosaic <- urban_cover[[1]]

plot(urban_cover_mosaic)

Figure 2: A raw depiction of the raster data on Urban Cover Tile fetched from Copernicus Data

Now, we can crop this raster data to the size fo the geometrical object, Haryana, in this case.

Code

get_urban_cover_cropped <- function() {
    # Create a Spatial Vector from haryana borders sf object
    haryana_borders_vect <- terra::vect(
        haryana_borders
    )

    # Cut out a part of a Spatial Raster
    urban_cover_cropped <- terra::crop(
        urban_cover_mosaic, haryana_borders_vect,
        snap = "in", mask = T
    )

    return(urban_cover_cropped)
}

# Lower Resolution to save space
urban_cover_cropped <- get_urban_cover_cropped() |>
    terra::aggregate(fact = 5)

plot(urban_cover_cropped)

Figure 3: The same raster image as above, now cropped according to the boundaries of Haryana

Lastly, we convert this raster data into a tibble, so that we can use it with ggplot2 and change it as we wish later on.

Code

urban_cover_df <- urban_cover_cropped |>
    as.data.frame(xy = T) |>
    as_tibble()

names(urban_cover_df)[3] <- "percent_cover"

Plotting the Urbanization Map of Haryana with ggplot2

Code

# Load fonts
font_add_google("Days One",
                family = "title_font")       # Font for titles
font_add_google("Saira Extra Condensed",
                family = "caption_font")     # Font for the caption
font_add_google("Strait",
                family = "body_font")        # Font for plot text
showtext_auto()

# Define Text Size
ts = unit(20, units = "cm")                             # Text Size

# Caption stuff
sysfonts::font_add(family = "Font Awesome 6 Brands",
                   regular = here::here("docs", "Font Awesome 6 Brands-Regular-400.otf"))
github <- "&#xf09b"
github_username <- "aditya-dahiya"
xtwitter <- "&#xe61b"
xtwitter_username <- "@adityadahiyaias"
linkedin <- "&#xf08c"
linkedin_username <- "dr-aditya-dahiya-ias"
social_caption <- glue::glue("<span style='font-family:\"Font Awesome 6 Brands\";'>{github};</span> <span style='color: {text_col}'>{github_username}  </span> <span style='font-family:\"Font Awesome 6 Brands\";'>{xtwitter};</span> <span style='color: {text_col}'>{xtwitter_username}</span> <span style='font-family:\"Font Awesome 6 Brands\";'>{linkedin};</span> <span style='color: {text_col}'>{linkedin_username}</span>")

# Add text to plot--------------------------------------------------------------
plot_title <- "Urbanization in Haryana (2019)"

plot_caption <- paste0("**Data:** Copernicus Global Land Service | ", "**Graphics:** ", social_caption)

text_col = "#631b00"
bg_col = "white"

p <- ggplot(urban_cover_df) +
    geom_raster(aes(
      x = x,
      y = y,
      fill = percent_cover
      )) +
    geom_sf(
      data = haryana_borders,
      fill = "transparent",
      color = "black",
      size = 1) +
    paletteer::scale_fill_paletteer_c("grDevices::OrRd",
                                      direction = -1) +
    guides(
        fill = guide_legend(
            title = "Urbanized Area (%)",
            direction = "horizontal",
            title.position = "top",
            label.position = "bottom",
            nrow = 1,
            byrow = T
        )
    ) +
    labs(
      title = plot_title,
      caption = plot_caption
    ) +
    ggthemes::theme_map() +
    theme(
      legend.position = c(0, 0.1),
      legend.key.width = unit(15, "mm"),
      plot.caption =  element_textbox(family = "caption_font",
                                  hjust = 0.5,
                                  colour = text_col,
                                  size = 1.5 * ts),
      plot.title   =     element_text(hjust = 0.5,
                                  size = 6 * ts,
                                  family = "title_font",
                                  face = "bold",
                                  colour = text_col,
                                  margin = margin(0,0,0,0)),
      plot.background =  element_rect(fill = bg_col,
                                  color = bg_col,
                                  linewidth = 0),
    plot.title.position = "plot",
    legend.text = element_text(size = 2 * ts,
                             family = "body_font",
                             colour = text_col,
                             margin = margin(0,0,0,0),
                             hjust = 0.5),
    legend.key = element_rect(fill = bg_col,
                            colour = bg_col),
    legend.background = element_rect(fill = bg_col),
    legend.title = element_text(family = "title_font",
                                colour = text_col,
                                hjust = 0.5,
                                size = 45)
)




ggsave(
  plot = p,
  filename = here("projects", "rastermaps.png"),
  height = unit(10, "cm"),
  width = unit(10, "cm"),
  bg = "white"
)

Final Plot of Urbanization in Haryana (2019)

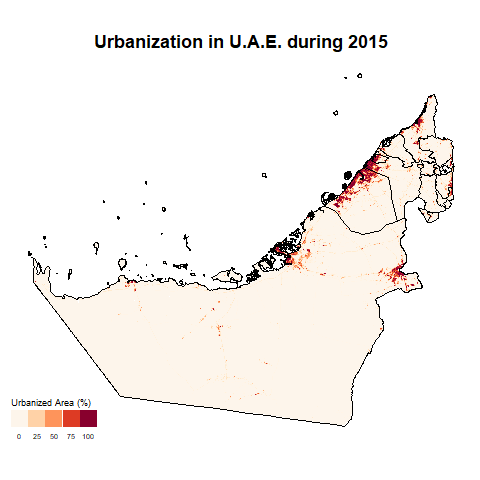

Change in Urbanization over Time

For this, we focus on UAE to see changes over time from 2015 to 2019. Unfortunately, the current data does not change over time, thus, there is no perceptible difference. But the code works!

Code

library(gganimate)

# Setting the CRS for projections in all following data
crsLONGLAT <- "+proj=longlat +datum=WGS84 +no_defs"


ggn_borders <- st_read(here("data",
                            "uae",
                            "are_admbnda_adm1_fcsc_20230515.shp")) |>
  select(geometry) |>
  st_transform(crsLONGLAT)

raster_files <- list.files(
    path = here("data", "uae"),
    pattern = "BuiltUp-CoverFraction-layer_EPSG-4326.tif",
    full.names = T
)

urban_cover <- lapply(raster_files, terra::rast)


get_urban_cover_cropped <- function(image) {
    ggn_borders_vect <- terra::vect(
        ggn_borders
    )
    urban_cover_cropped <- terra::crop(
        image, ggn_borders_vect,
        snap = "in", mask = T
    )

    return(urban_cover_cropped)
}

fact_res <- 5

# Save image for each year from 2015 to 2019
urban2015 <- get_urban_cover_cropped(urban_cover[[1]]) |>
  terra::aggregate(fact = fact_res)
urban2016 <- get_urban_cover_cropped(urban_cover[[2]]) |>
  terra::aggregate(fact = fact_res)
urban2017 <- get_urban_cover_cropped(urban_cover[[3]]) |>
  terra::aggregate(fact = fact_res)
urban2018 <- get_urban_cover_cropped(urban_cover[[4]]) |>
  terra::aggregate(fact = fact_res)
urban2019 <- get_urban_cover_cropped(urban_cover[[5]]) |>
  terra::aggregate(fact = fact_res)

make_img_df <- function(image, year_coded){
  temp <- image |>
    as.data.frame(xy = T) |>
    as_tibble()

  names(temp)[3] <- "percent_cover"

  temp <- temp |>
    mutate(year = year_coded)

  return(temp)
}

urban_cover_df <- bind_rows(
  make_img_df(urban2015, 2015),
  make_img_df(urban2015, 2016),
  make_img_df(urban2015, 2017),
  make_img_df(urban2015, 2018),
  make_img_df(urban2015, 2019)
)

g <- ggplot(urban_cover_df) +
    geom_tile(aes(
      x = x,
      y = y,
      fill = percent_cover
      )) +
    geom_sf(
      data = ggn_borders,
      fill = "transparent",
      color = "black",
      size = 1) +
    paletteer::scale_fill_paletteer_c("grDevices::OrRd",
                                      direction = -1) +
    guides(
        fill = guide_legend(
            title = "Urbanized Area (%)",
            direction = "horizontal",
            title.position = "top",
            label.position = "bottom",
            nrow = 1,
            byrow = T
        )
    ) +
    labs(
      title = "Urbanization in U.A.E. during {closest_state}"
    ) +
    ggthemes::theme_map() +
    theme(
      plot.title = element_text(hjust = 0.5,
                                face = "bold",
                                size = 18)
    ) +
    transition_states(states = factor(year)) +
    enter_fade() +
    exit_fade()

anim_save(
  animation = g,
  filename = here("docs", "uae_urban.gif"),
  nframes = 20,
  duration = 10
)
